Allen-Bradley MPL-B430P-MJ24AA

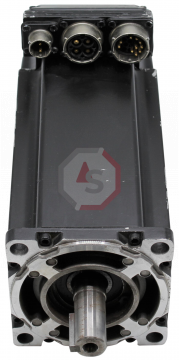

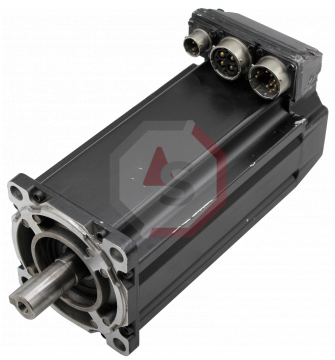

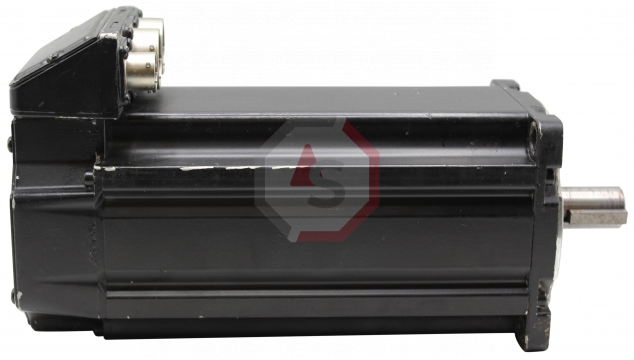

MPL-B430P-MJ24AA Image 1 thumbnail
MPL-B430P-MJ24AA Image 2 thumbnail
MPL-B430P-MJ24AA Image 3 thumbnail
Manufacturer: Allen Bradley - Motors
Product Type: Automation Product
Part Number: MPL-B430P-MJ24AA
Series: MPL Servo Motors

Description:

The MPL-B430P-MJ24AA is a servo motor of Allen-Bradley's MP series with low inertia servo motors. The frame size of this motor measures 115 millimeters. It has a 3.0 inch magnetic stack and a rotational speed of 5000 revolutions per minute. This device has absolute multi-turn encoder feedback, as well as a 24 volt direct holding brake and a shaft with a steel composed key with no seal. It also employs bayonet-style circular connections and a type of FF IEC metric mounting flange.



Automation Stop is NOT an authorized distributor for this manufacturer and therefore the manufacturer’s warranty does not apply. Product comes with Automation Stop's 1-year warranty.

  Pay

We accept credit cards from all major providers, as well as PayPal.

  Ship

We offer worldwide shipping with UPS and DHL.

  Warranty

We proudly offer a one year Automation Stop warranty on most products.

Rockwell Disclaimer: The product is used surplus. Automation Stop is not an authorized surplus dealer or affiliate for the Manufacturer of this product. The product may have older date codes or be an older series than that available direct from the factory or authorized dealers. Because Automation Stop is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Allen-Bradley PLC products will have firmware already installed, DO Supply makes no representation as to whether a PLC product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Automation Stop also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Rockwell, its distributors, or any other source. Automation Stop also makes no representations as to your right to install any such firmware on the product. Automation Stop will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.

The MPL-B430P-MJ24AA from Allen Bradley is an AC synchronous PM servo motor. It is appropriate for applications requiring precisely measured torque, speed, or position. This device utilizes permanent magnets mounted on a rotor with a stack length that measures three (3) inches. It is classified as IEC 60072-1 rotating machinery with mounting flange, having a frame size of 115 millimeters. Its power requirements are in line to the high voltage class, ranging from 30 to 1000 volts of type alternating current (also known as class B), having an operating voltage of 400 volts in which the voltage requirement is dependent on armature winding. A multi-turn encoder is used within this motor and is used to determine the position of the stator with reference to the rotor position whenever the motor is powered on for optimum torque control. It employs a brake mechanism and to release this brake, a direct current power supply of 24 volts is needed.

The electrical (feedback/brake/power) connectors on the MPL-B430P-MJ24AA are round bayonets. They are built to meet the most severe standards in the harshest climates. It has a specified, as well as maximum, speed, in rev/min (rpm), of 5000, as well as a continuous stall torque of 58 pounds inches. This product has a peak stall torque of 175 pounds inches, a rotor inertia of 0.0033 pounds inches second squared, and a weight of approximately 16 pounds. This motor can run at 5000 revolutions per minute with a radial load force of up to 108 pounds and an axial load force of 42 pounds. When the aforementioned load forces are increased, the motor's rotating speed drops.

Technical Specifications

MPN MPL-B430P-MJ24AA
Manufacturer Allen Bradley/Rockwell Automation
Series MP-Series Low-inertia Servo Motor with 100 mm to 165 mm Frame Size
Voltage Class 400V
Frame Size 115 mm
Magnetic Stack Length 3 in
Rated Speed 5000 rpm
Feeback Multi-turn high-resolution encoder
Shaft Key/Seal Shaft key/no shaft seal
Connectors Circular bayonet, facing shaft
Brake 24V DC brake
Mounting Flange IEC Metric
Factory Designated Options Standard
We offer UPS shipping. Including Ground, 2nd Day Air, Next Day Air and Early AM. Some of our products have a short lead time, so please contact us if you need any item faster than the lead time shown. If you need to order an item internationally please contact us prior to checking out so we can get you a shipping quote. We can ship UPS or DHL internationally. We can also ship on your UPS or FedEx account number.
If the item is found to be defective within 30 days of the invoice date, a full refund can be issued. If an item is found to be defective through normal use and wear after 30 days but within the 1 year period, the Automation Stop Warranty dictates the appropriate course of action. After the 30 day period, Automation Stop reserves the right to decide between refund, repair, or replacement with identical product. Because of the high volume of outgoing and incoming shipments on a day to day basis, we unfortunately cannot accept returns on items ordered mistakenly or part numbers ordered incorrectly. If a special exception is approved, a 20% restocking fee will be assessed. If you have any questions please contact us at sales@automationstop.com.

FAQ

Question: Does Automation Stop offer repairs on the MPL-B430P-MJ24AA?

Answer: Yes. We offer repairs for the MPL-B430P-MJ24AA and it comes with our 1 Year Automation Stop Warranty.


Question: What type of warranty comes with the Allen Bradley - Motors and MPL-B430P-MJ24AA?

Answer: If you buy the MPL-B430P-MJ24AA through Automationstop.com it comes with our 1 Year Warranty and no other warranties.


Question: Can I buy the MPL-B430P-MJ24AA online?

Answer: Yes. Automation Stop sells the MPL-B430P-MJ24AA online and you can check out for the quantity and condition listed available above.


Question: What is the manufacturer for the MPL-B430P-MJ24AA?

Answer: The MPL-B430P-MJ24AA is made by Allen Bradley - Motors.


Question: What type of product is the MPL-B430P-MJ24AA?

Answer: The MPL-B430P-MJ24AA is part of the MPL Servo Motors series.


Question: What is the Brake of the MPL-B430P-MJ24AA?

Answer: The MPL-B430P-MJ24AA has a Brake of 24 volts direct current brake.


Question: What kind of Connectors does the Rockwell Automation MPL-B430P-MJ24AA have?

Answer: The MPL-B430P-MJ24AA has Connectors Circular bayonet, facing shaft.


Question: What kind of Factory Designated Options does the Allen-Bradley MPL-B430P-MJ24AA have?

Answer: The Allen-Bradley MPL-B430P-MJ24AA includes Standard for its Factory Designated Options.


Question: What Feeback is included with the Allen Bradley Automation MPL-B430P-MJ24AA?

Answer: The MPL-B430P-MJ24AA has a Multi-turn high-resolution encoder Feeback.


Question: What is the Frame Size of the MPL-B430P-MJ24AA?

Answer: The Frame Size of the Rockwell-Automation MPL-B430P-MJ24AA is 115 mm .


Question: What is the Magnetic Stack Length of the Allen Bradley-Rockwell Automation MPL-B430P-MJ24AA?

Answer: The Magnetic Stack Length of the Allen Bradley-Rockwell Automation MPL-B430P-MJ24AA is 3 in .


Question: What Mounting Flange does the MPL-B430P-MJ24AA have?

Answer: The Allen Bradley MPL-B430P-MJ24AA has a IEC Metric Mounting Flange.


Question: What is the Rated Speed of the Rockwell Automation MPL-B430P-MJ24AA?

Answer: The Rated Speed of the Rockwell Automation MPL-B430P-MJ24AA is 5000 revolutions per minute (RPM).


Question: What Shaft Key/Seal is included with the Allen Bradley-Rockwell Automation MPL-B430P-MJ24AA?

Answer: The MPL-B430P-MJ24AA has a Shaft key/no shaft seal Shaft Key/Seal.


Question: What is the Voltage Class of the MPL-B430P-MJ24AA?

Answer: The Voltage Class of the Allen Bradley MPL-B430P-MJ24AA is 400V.


Series information for MPL-B430P-MJ24AA

For additional information about MPL-B430P-MJ24AA check the data sheet or manual. Also check the manual PDF for all wiring diagrams, compatibility, troubleshooting, specifications, installation instructions, and accessories (such as batteries, terminal blocks, or cables) regarding MPL-B430P-MJ24AA.

Revision Part # Also Known As Availability
MPL-B430P-MJ24AA/A MPL-B430P-MJ24AA Ser A, Series A, Rev A Request a Quote
